Dual Hydraulic Wireline Valve Wireline Pressure Control Equipment

  • 1
  • 2

Brand Name : Ruixin

Model Number : 2inch ID 3inch ID 4.06inch ID 5-1/8inch ID

Certification : API

Place of Origin : China Baoji

MOQ : 1

Price : USD 2500~

Payment Terms : T/T

Supply Ability : 1 set 3 weeks

Delivery Time : 4-8 weeks

Packaging Details : Wooden Box

Name : Dual Hydraulic Wireline Valve Wireline Pressure Control

Material : Alloy Steel

Type : Hydraulic&Manual

ID : 2"~7"

Use : Wireline &Slickline

Work Pressure : 3k 5k 10k 15k

Service : Standard&H2S

Contact Now

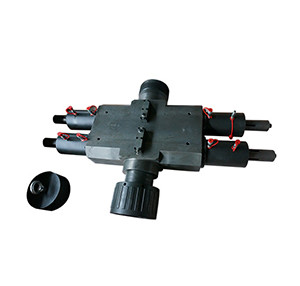

Dual Hydraulic Wireline Valve Wireline Pressure Control Equipment

Dual Hydraulic Wireline Valve Wireline Pressure Control

Dual Hydraulic operated Wireline Valve features two sets of Ram assemblies and hydraulic actuated

system that allow fast,safe and easy operation in a remote location. Dual Hydraulic Type 1 is suitable

for slickline and braided line operation by changing its respective rams.

Wireline Valve, also known as Blow Out Preventer(BOP), is used as a safet quipment which is commonly

located between Lubricator and Wellhead/ Christmas Tree. The design incorporates Ram bodies with inner

seals that allow pressure to be contained within the well once the bodies are closed. This allow the pressure

above to be bled off while the wire or cable is still intact thereby enable repairing and other work to be carried

out on equipment above, The design also features equalising Valves that are fitted to the main body to allow

ecualisation o ubricator and well pressure when the operation is to be resumed

Dual Integral Hydrauic Wireline Valve incorporates an integral top quick union connection to the main body. The

hydraulic operation features two sets of Ram assemblies and hydraul c actuated system that allow fast, safe and

easy operation a remote location. This design is suitahle for slickline and braided line operation Shear Ram design

available on request

Model

Work Pressure

Bore

Wireline / Slickline OD.

Control Method

Remarks

FZ6.3-35

35MPa

2.5"

0.125"

Manual/ Hydraulic

Single

Ram

2FZ6.3-35

35MPa

2.5"

7/32"

Hydraulic

Double Ram

FZ7.6-35

35MPa

3"

0.125"

Manual/ Hydraulic

Single Ram

2FZ7.6-35

35MPa

3"

7/32"

Hydraulic

Double Ram

FZ10.2-35

35MPa

4"

0.125"

Manual/ Hydraulic

Single Ram

2FZ10.2-35

35MPa

4"

7/32"

Hydraulic

Double Ram

FZ6.3-70

70MPa

2.5"

0.125"

Hydraulic

Single Ram

2FZ6.3-70

70MPa

2.5"

7/32"

Hydraulic

Double Ram

FZ7.6-70

70MPa

3"

0.125"

Hydraulic

Single Ram

2FZ7.6-70

70MPa

3"

7/32"

Hydraulic

Double Ram

FZ10.2-70

70MPa

4"

0.125"

Hydraulic

Single Ram

2FZ10.2-70

70MPa

4"

7/32"

Hydraulic

Double Ram

FZ6.3-105

105MPa

2.5"

0.125"

Hydraulic

Single Ram

2FZ6.3-105

105MPa

2.5"

7/32"

Hydraulic

Double Ram

FZ7.6-105

105MPa

3"

0.125"

Hydraulic

Single Ram

2FZ7.6-105

105MPa

3"

7/32"

Hydraulic

Double Ram

FZ10.2-105

105MPa

4"

0.125"

Hydraulic

Single Ram

2FZ10.2-105

105MPa

4"

7/32"

Hydraulic

Double Ram
